- voltbot tiny power module 28v4a dc dc step down negetive voltage 1 2v 2 5v 3 3v 5v 9v 5v 12v 3 3v slim mini
Output Frequency: 0~500K
Model Number: MPF24
Output Type: Single
Output Power: 1 - 50W
Output Current: 0-5A
4A Ultra Tiny DC-DC Step-Down Module
• Up to 4-A Output Current • Compact Size: 11mm*8mm • 4.5-V to 28-V Input Voltage • ±1.5% Total Output Voltage Variation • Efficiencies up to 94% • Wide Operating Temperature: A grade: -20 oC to 70 oC • On/Off Inhibit • Auto Under-Voltage Protection • Auto Over-Voltage Protection • Auto Over-Current Protection • Auto Over-Temperature Protection • Soft-Start • Power Saving Mode at Light Load • Designed to meet Ultra-Fast Transient Requirements up to 300 A/μs

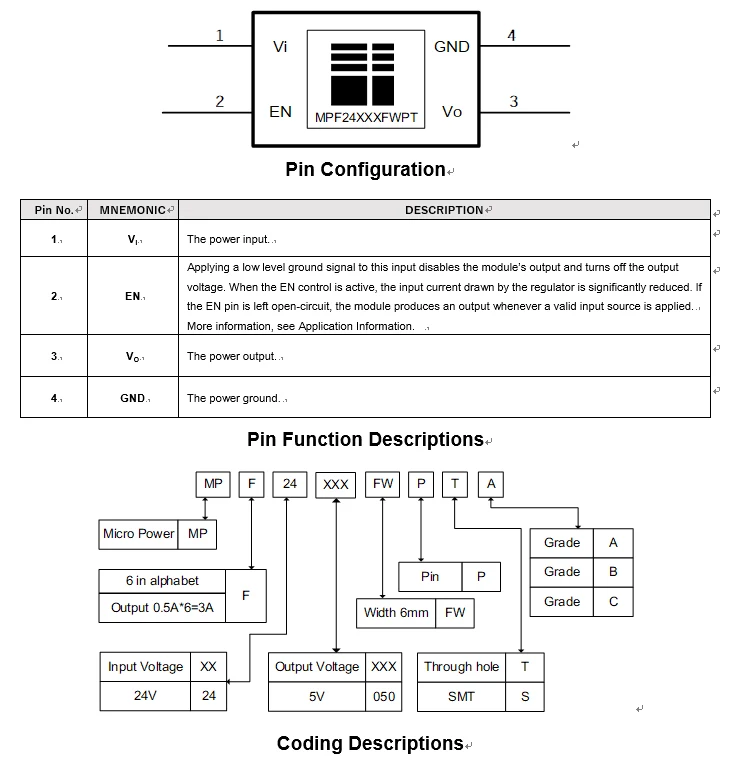

The MPF24XXXFW series is available with fixed output voltages and inhibit control. Both wide input range and output range makes them useful in a wide range of application. With adequate heat sinking and perfect efficiency, the MPF24XXXFW series could provide 4-A load current. Due to its great transient response, it is ideal to replace LDO in high frequency applications. With its low cost, high-stability and compact-size features, MPF24XXXFW is the ideal for scientific instruments, industrial control and medical equipment. Output over-current and over-temperature shutdown protects against most load faults. Over Voltage and Under Voltage is quite useful to protect the system under debugging, where output disturbance often occurs due to faulty operation or failed components. Considerable effort was expended to minimize module and make it easy to mount. The module uses double-sided surface mount construction to provide a low profile and compact footprint. Package options include both through-hole and surface mount configurations that are lead (Pb) free and RoHS compatible.
Negative Output Version
It is possible to generate -3.3V, -5V, -12V with any of +3.3V~12V.
Positive Version: http://realtimin.oss-cn-hongkong.aliyuncs.com/MPF24XXXFW_RTI_RevA.pdf Negative Version: http://realtimin.oss-cn-hongkong.aliyuncs.com/MNF24XXXFW_RTI_RevA.pdf
100% human-tested before shipment.
This product is designed by SillyComm, and produced by Realtimin. We are open to provide customized version.
SillyComm is a manufacturer of electronics instruments, established in 2012. We want to express the meaning "Even silly could communicate and be happy". We have offices in both Beijing and Shenzhen. We are dedicated to convenient scientific instruments, home appliances, and innovative power supplies. We are an entity owned by 100% private shareholders and we have absolutely no contracts with any government or its agencies. Based on abundant highly-educated human resources and strong manufacturing workforce, we believe in freedom could help the improvement of technology and we confidently provide noble, decent, stable and reliable products for customers in the world.
